How to migrate React Native apps from Jenkins and fastlane to Bitrise

‍React Native is a framework for building native mobile apps for iOS and Android in one shared JavaScript or TypeScript codebase, for which you will need to have an understanding of JavaScript fundamentals. The underlying build system is a normal iOS and Android project, with a JavaScript execution environment and libraries to render your bundled JavaScript code into actual native components.

There are various ways to install and build your first React Native app. If you are new to mobile development, the easiest way to get started is with Expo CLI. Expo is a set of tools built around React Native and, while it has many features, if you are already familiar with mobile development, you may want to use React Native CLI. It requires Xcode or Android Studio to get started. Read more about setting up a React Native development environment.

At Bitrise, we are building a Mobile Devops platform built around CI/CD, to help mobile engineers to deliver high-quality apps faster. And one of the platforms that we support is React Native with different features like:

• Android and iOS native apps in one workflow
• Easy code signing for both platforms in one workflow
• Deployment to testers and the ability to send your apps straight to the app stores


If you have been looking to switch from Jenkins to Bitrise to speed up your iOS CI/CD flow and ease dedicated manpower, this article is for you! I will discuss how to migrate your React Native app from Jenkins to Bitrise, covering the following steps:

1. Manage the app dependencies.
2. Manage key stores, certificates, and provisioning profiles to sign both apps.
3. Run E2E UI tests with Detox.
4. Release apps to beta testers.
5. Release a new version for the Apple Store and Google Play Store .
6. Send a Slack notification with the build statuses to the dev team.

Before you get started

Before we get started with this article I will assume that your Jenkins server is installed on a macOS machine and configured for the React Native app. To be able to build and manage your both iOS and Android app smoothly, you will need to have done the following:

1. Installed NodeJS and NPM.
2. Installed Bundler.
3. Installed and integrated fastlane into your iOS project and created an example lane.
4. Installed Ruby and fastlane in the PATH to be able to use them with Jenkins.
5. Configured fastlane match: the approach to iOS’s code signing which makes it easy for teams to manage the required certificates and provisioning profiles for your iOS apps.
6. Installed Homebrew.
7. Installed React Native CLI or Expo CLI.
8. Installed CocoaPods for the iOS app dependencies.
9. Installed Java JDK on a macOS machine.
10. Installed Android SDK on a macOS machine.
11. Installed Xcode and Xcode command line developer tools.
12. installed and configured Jenkins on a macOS machine.
13. Installed and configured Detox for E2E tests.
14. Installed and configured the Jenkins Environment Variables for the following:

• Git > The path to Git executable

Note:  The Jenkins machine should be configured to automatically manage signings by logging in to the relevant accounts on Xcode. But here we are using fastlane to help us manage code signing and use the right provisioning profiles for your project. More information can be found in our migrating an iOS app from Jenkins to Bitrise article.

Then you should have a Jenkins pipeline project that includes the Jenkinsfile with the following setup:

The pre-request section in the Jenkinsfile.

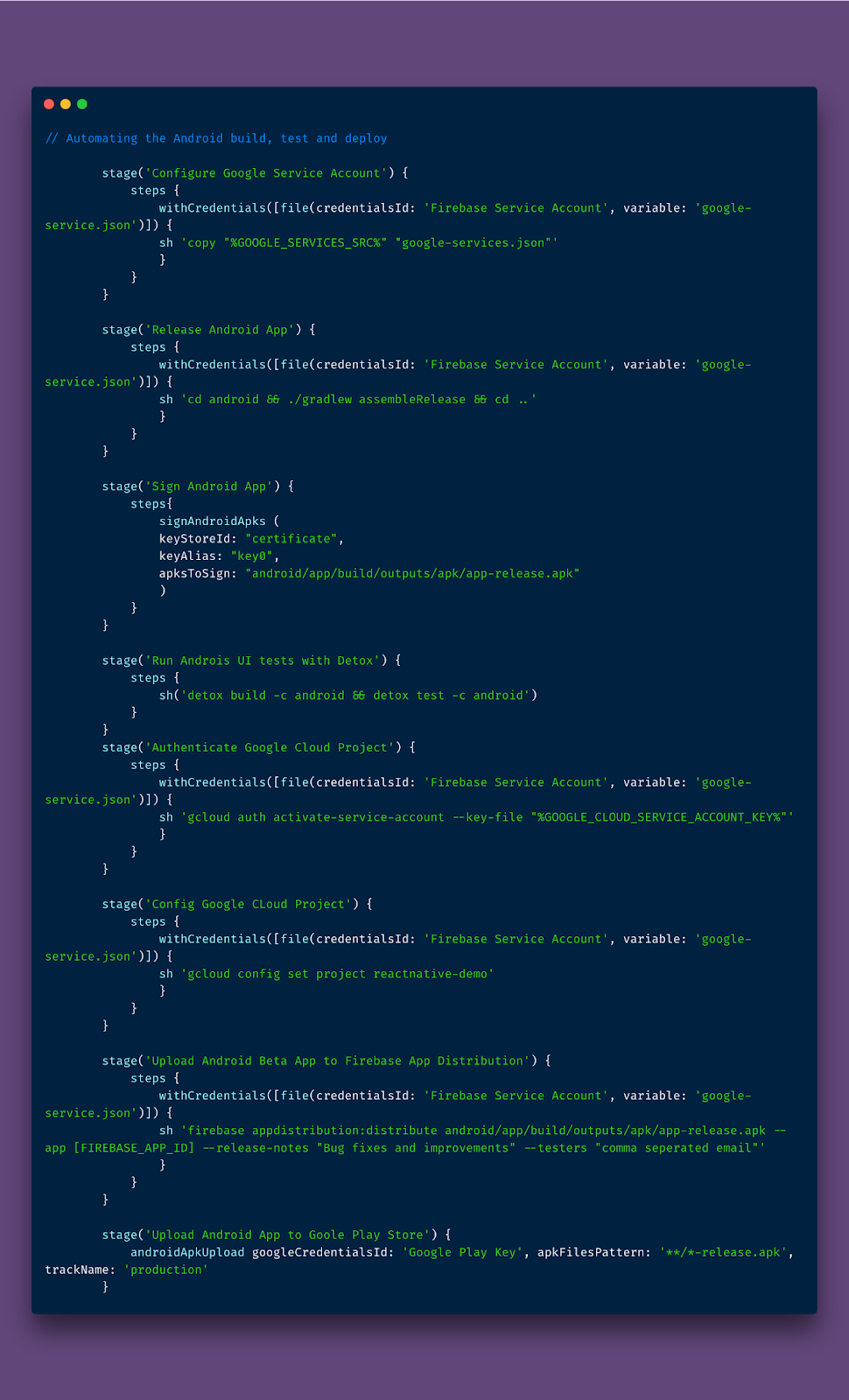

The Android section in the Jenkinsfile.

The iOS section in the Jenkinsfile using fastlane.

And the post Step section to send a Slack message.

You can find the Jenkinsfile on Github.

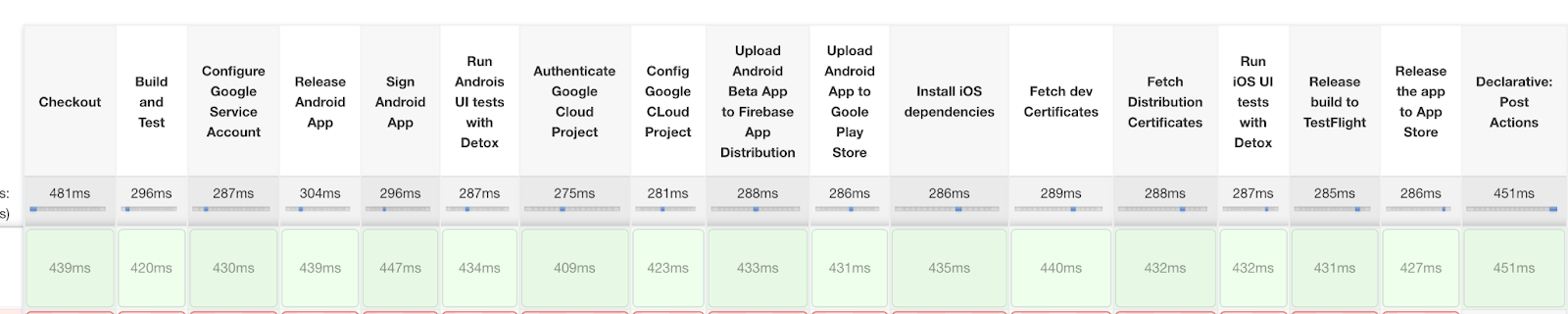

The final pipeline should look like this:

As you can see, setting up a React Native project with Jenkins requires a lot of steps, including server configuration, plugin installation, and writing the Jenkinsfile from scratch using Groovy code. This also requires additional skills with the Groovy programming language and you will also need help from the DevOps team to install and configure Jenkins.

Now it’s time to speed up your CI/CD pipeline with easy setup and less effort. Let’s get started by migrating our iOS app from Jenkins and fastlane to Bitrise.

1. First, you need to create a free Bitrise account:

2. After logging in, you will have a blank dashboard and you can start adding your projects.

3. Click the Add your first app button.

4. Select your account and set the privacy for the App (Private or Public) and click Next.

5. Choose the repository but before that, you have to give Bitrise access rights to your source code provider. (e.g. Bitbucket)

6. You need to set up the repository access, so either auto-add an SSH key or manually add your own SSH key.

7. Choose the branch name (e.g. master branch) and click Next.

8. Next, Bitrise will run a validation with your repository and configuration.

9. After validating, the project build configuration will display successfully (e.g. React Native App). The scanner detected that the project type is React Native.

And we should configure the build configuration for both apps:

You can also edit this configuration if you need to use a different Xcode stack.

TIP

Bitrise supports the latest Xcode versions within 48 hours of Apple’s announcements to give mobile engineers the opportunity to update their apps and use new features with the latest SDKs for iOS, iPad, watchOS, and the latest OS like macOS Big Sur. For more info read our article on Xcode availability benchmarks.

10. Click the Confirm button after reviewing the workflow stack. You can add the app icon as well or you can skip it for now.

11. The final step is Webhook set up: you just need to select Register a Webhook for me and you will trigger your first iOS build for your project 🚀 🎉

12. You will be redirected to the build log and you can check the Steps and the build status.

‍

13. At the end, you will find a summary of all the tasks that you have run during the build with the time and Step names. You can also download logs or check the apps and artifacts.

You will also receive an email notification about the build status.

‍

NOTE

As you may have noticed, we didn’t need to configure or install any prerequisites related to the infrastructure or the stack because Bitrise is managing all of these things for us. For example, installing and configuring NodeJS, NPM, or Git.

14. Now, let’s open the Workflow Editor to start migrating all the required Steps that we have in the Jenkinsfile.

15. In the Workflow Editor, you will find that we already have the predefined Steps added.

Let’s remember the steps that we need to migrate from Jenkins and fastlane to Bitrise for the React Native app:

1. Manage the app dependencies.
2. Manage key stores, certificates, and provisioning profiles to sign both apps.
3. Run E2E UI tests with Detox.
4. Release apps to beta testers.
5. Release a new version for the Apple Store and Google Play Store .
6. Send a Slack notification with the build statuses to the dev team.

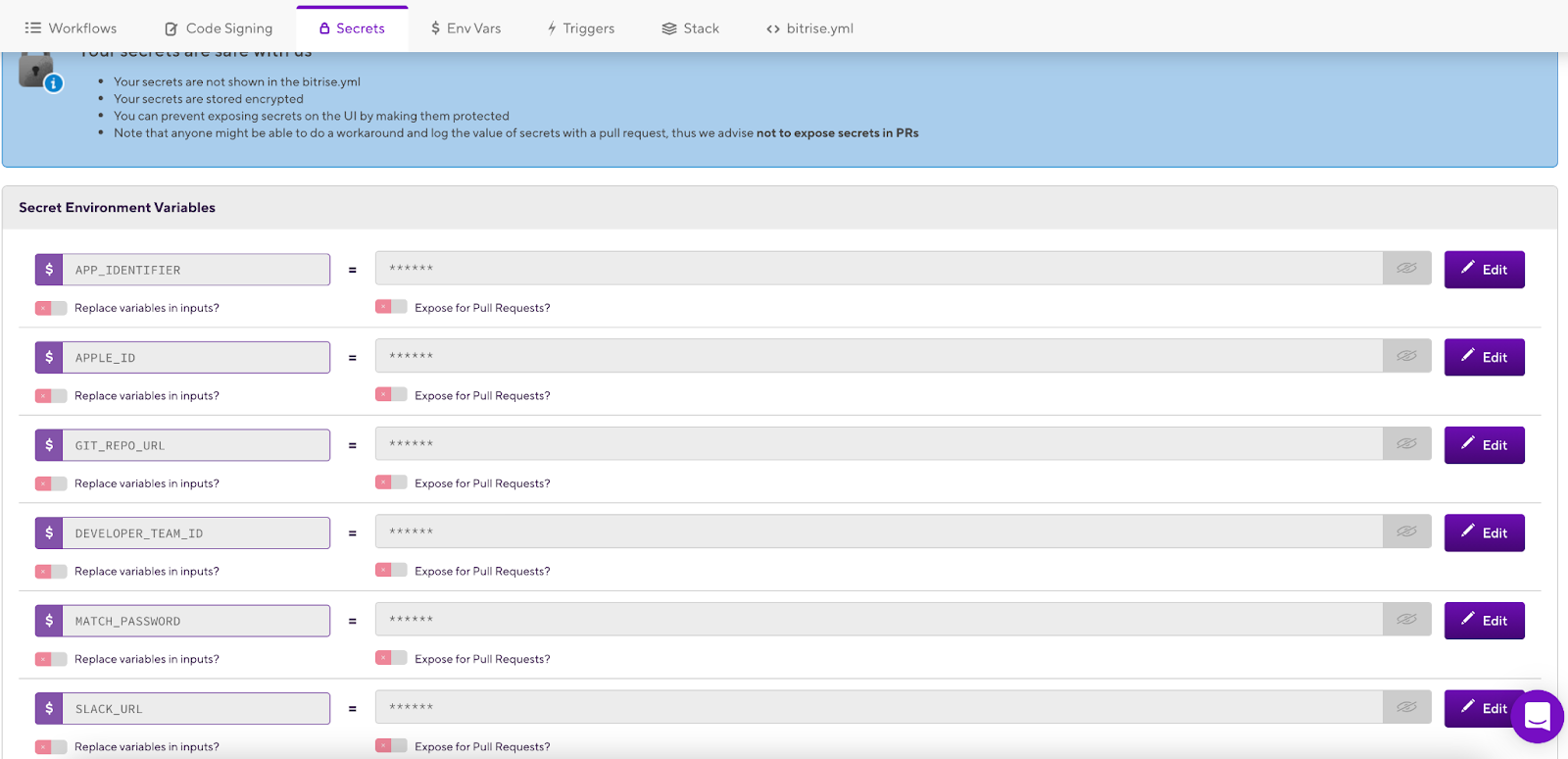

16. Select the Secrets tab to add your Environment Variables such as:

• APP_IDENTIFIER
• APPLE_ID
• GIT_REPO_URL
• DEVELOPER_TEAM_ID
• MATCH_PASSWORD
• SLACK_URL
• ANDROID KEYSTORE FILE

17. Select the Env Vars tab to add any other Environment Variables you need in your application. DO NOT add private information here, because these Environment Variables will also be available in builds triggered by pull requests and bitrise.yml.

18. Select the Workflow Editor tab to start adding the missing Steps into your CI/CD workflow.

TIP: You can rename the Workflow’s default name from primary to, for example, ReactNativeCICD.

19. We already have a Step for the Active SSH Key and Git Clone Repository. Run npm command including npm install and npm test commands to be able to access and clone the source code from GitHub or any other source code management tool and install the requirements for our React Native app.

20. We will add new Steps to our Workflow to build, test, and deploy our Android and iOS apps by clicking the [+] button which will display all the integration Steps that we have for React Native apps in Bitrise.

TIP: You can select All to display all the Steps for all platforms.

TIP: Bitrise has 320+ integration Steps for all the mobile platforms with different categories.

21. We will start with the Android app and add the following Steps, like the Jenkins pipeline:

22. Then we will add the fastlane Steps for the iOS app, like the following:

You can add one of Bitrise’s code signing Steps, such as Certificate and profile installer, iOS Auto Provision, and fastlane Match to your Workflow. Alternatively, you can use the fastlane match inside our fastlane lane instead of a code signing Step.

Make sure you either use the fastlane Match Step or set up the fastlane match in your lane but don’t try to do both. You should either use your existing lane or use the fastlane Match integration Step.

For more information check the fastlane integration tools documentation and how to configure fastlane match for Bitrise.

And in the Steps we also added a script Step to install and run the Detox UI tests:

23. Add the Send a Slack message Step at the end of the Workflow to send the final status of the build:

TIP: For each step in the Bitrise Workflow we have an option to run the current Step, whether the previous Step failed or not. This will help us to abort the build if any previous Steps failed and avoid wasting any time. (It’s set to off by default)

24. You can now run your React Native CI/CD workflow manually by clicking Start/Schedule a Build or based on the trigger map with Bitrise. For example, you can specify a GitHub Tag or branch with a specific Workflow.

TIP: If you want to schedule the build to run nightly you can also configure it easily by selecting the date/time, branch name, and the Workflow name.

TIP: You can find the bitrise.yml file including all the Steps that we added in the Workflow editor and you can save it in your repository or store on Bitrise.io.

Need to reduce the build time?

If your team is scaling and you need to reduce the build times even more, you can use an additional feature from Bitrise to run parallel builds. You can run different sub or small Workflows at the same time to reduce the main Workflow time. Check the Bitrise Start Build or our articles on fanning out tests on Bitrise for iOS and Android apps.

And one more thing that will speed up your builds — recently we introduced Gen2, the next generation of Bitrise Build Infrastructure with improved performance, stability, and security. Find out how Gen2 drastically reduced build times for six apps in our Gen2 Benchmark report.

Congratulations!  🎉 You have successfully migrated your iOS app from Jenkins and fastlane to Bitrise. You can now start building and releasing your applications seamlessly, with no extra effort.
